Bag Filter Product Introduction
Bag filters are one of the most widely used filtration devices in industrial applications, primarily employed for pre-filtration and fine filtration in industries such as food & beverage, water treatment, bioengineering, new energy batteries, and chemical processing. Broyue offers single-bag and multi-bag filters to meet varying flow rate requirements, with support for customized designs and OEM manufacturing.
- Product Series

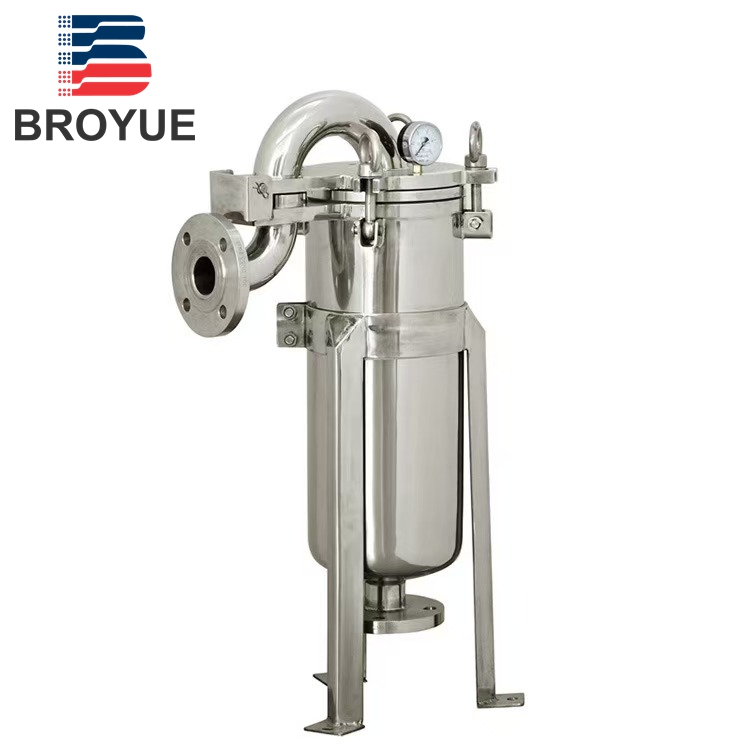

(1) Single-Bag Filter
- Compatible Bag Sizes: No. 1, 2, 3, and 4 standard filter bags
- Features:
- Adjustable leg height for flexible on-site installation
- Compact structure, suitable for small to medium flow rates
- Easy bag replacement, minimizing maintenance costs
(2) Multi-Bag Filter
- Standard Configuration: No. 02 filter bags (other sizes customizable)
- Bag Capacity: 2-24 bags (standard: 2-12 bags, expandable for high-flow needs)
- Features:
- High-flow processing capability, ideal for large-volume applications
- Modular design, allowing flexible adjustment of bag quantity
- Parallel/series installation for multi-stage filtration
- Key Advantages
(1) Premium Materials & Precision Manufacturing
- Body Material: High quality Stainless steel 304 / 316 (corrosion-resistant, high-temperature resistant)
- Welding Technology: High-precision welding for optimal sealing
- Surface Finish: Fine polishing, compliant with GMP/FDA standards
Flexible Installation Options
- Fixed Mounting: Adjustable legs for versatile setups
- Mobile Configuration: Compatible with carts + pumps for portability
- Multi-Stage Series Connection: Enables coarse → fine graded filtration
(3) Broad Applicability
- Standard Operating Pressure: 1MPa
- Temperature Resistance: ≤150°C (higher-temperature models available upon request)
- Compatible Media: Water, organic solvents, acids/alkalis, food-grade fluids, etc.
- Industry Applications
Food & Beverage: Syrup filtration, juice clarification, beer pretreatment
Water Treatment: Industrial wastewater pre-filtration, RO system pre-treatment
Bioengineering: Fermentation broth filtration, cell culture media purification
New Energy Batteries: Electrolyte filtration, lithium battery slurry processing
Chemical Processing: Solvent fine filtration, catalyst recovery, acid/alkali purification
- Customization & OEM Services
- Material Customization: Options include 304, 316L, titanium alloy, PP/PTFE lining, duplex 2205, etc.
- Size Customization: Non-standard dimensions, special ports, unique structural designs
- Functional Upgrades: high-temperature/high-pressure
- OEM Branding: Supports custom branding and packaging
Material
| Shell | 304, 316L, Duplex Steel 2205 |
| Non-liquid contact parts | 304 |
| Seal O-ring | EPDM, PTFE, Viton, Silicone |
Nozzles
| Shell &cover connection | Flange |
| In-outlet | Flange, Tri-clamp, Thread, Butt-weld |
| Pressure Gauge
(option) |
1” Tri-clamp
(3#Bag /4#Bag) |
| Vent Valve (option) | 1/2” Tri-clamp |
Surface Finish
| Finish type | Mechanical polishing, electrolytic polishing, sandblasting, pickling |
| Polishing precision | Standard of MP: Inner surface Ra≤0.6μm ,Outside surface Ra≤0.8μm.
0.6μm |
Selection Table
| ［Qty. of Bag Filter］ | ［Model of Bag Filter］ | ［Shell Material］ | ［In-outlet connection］ | ［O-ring］ | ||
| BYBF | 1P | 2S | 4 | F | E | |
| 2P=2pcs | 7P=7pcs | 1S=1# Bag：Φ180 x 430 | 4= 304 | F= Flange | E=EPDM | |
| 3P=3pcs | 9P=9pcs | 2S=2# Bag：Φ180x 810 | 6= 316L | TC= Tri-clamp | P=PTFE | |
| 4P=4pcs | 12P=12pcs | 3S=3# Bag：Φ105 x 230 | S= SMS | V=Viton | ||
| 4S=4# Bag：Φ105x 380 | ||||||
