Industrial Agitators – Precision Mixing Solutions
Custom-Engineered for Critical Processes
Our high-performance agitators are designed for pharmaceutical, chemical, food, and cosmetic applications,
offering:
– Material: 304/316L stainless steel (electropolished Ra ≤0.4μm)
– Construction: Seam-welded & hand-finished for zero contamination risk
– Certifications: ATEX, IECEx, FDA, EHEDG (for sanitary applications)
| Agitator Types & Functions | |||
| Type | Design | Key Functions | Ideal For |
| Anchor | Close-clearance scraping | • High-viscosity mixing
• Heat transfer optimization |
Pastes, polymers, cosmetics (50,000–500,000 cP) |
| Turbine | Radial-flow blades | • Gas-liquid dispersion
• Emulsification |
Hydrogenation, fermentation, creams |
| Propeller | Axial-flow pitched blades | • Homogenization
• Solid suspension |
Wastewater, slurries, dilute solutions |

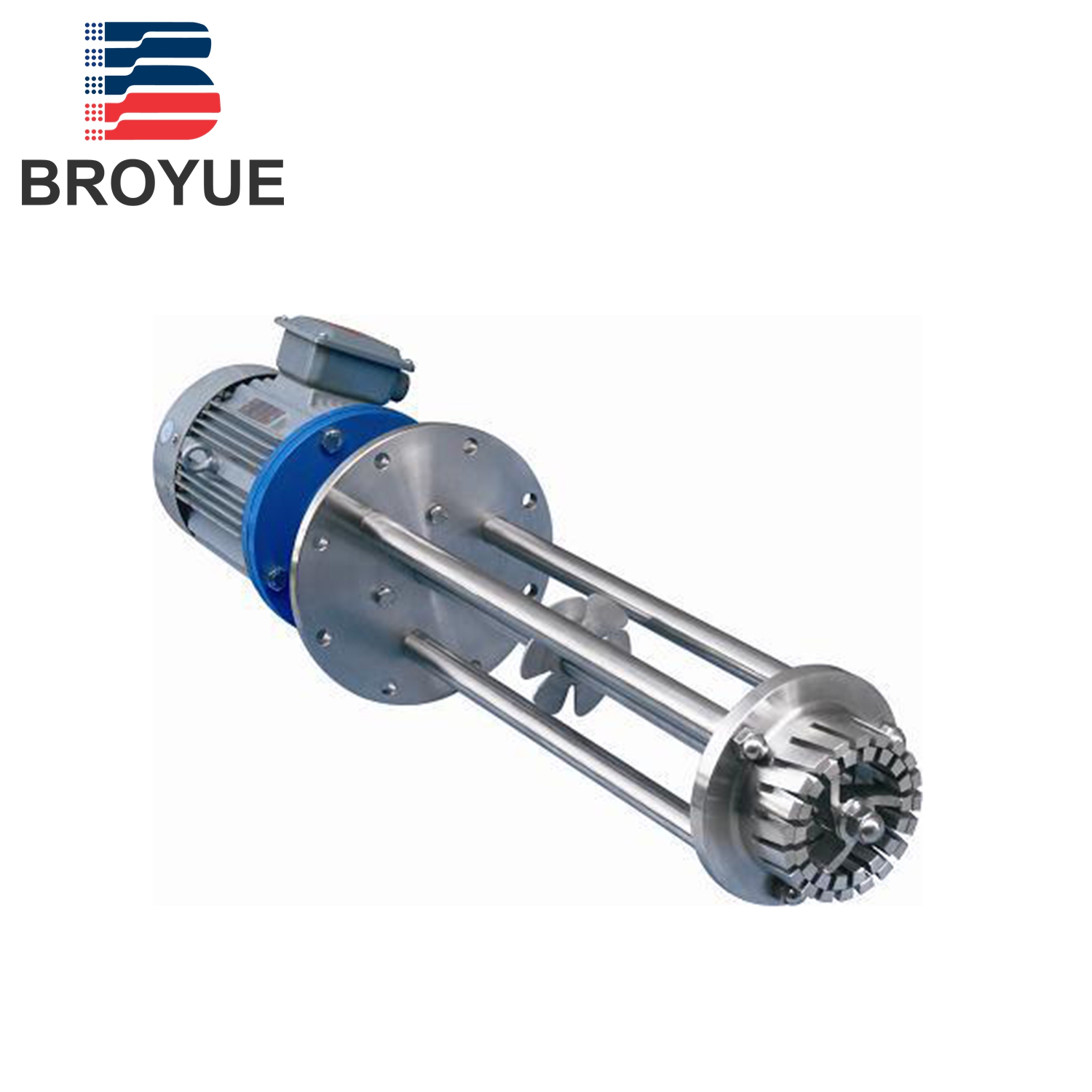

| High-Shear | Rotor-stator assembly | • Particle size reduction
• Nano-emulsions |
Pharmaceuticals, nano-materials |
| Helical Ribbon | Dual-motion spiral | • Dead-zone elimination
• Powder incorporation |
Adhesives, food doughs |
Advanced Motor & Drive Options
- Explosion-Proof Systems (ATEX/IECEx Certified)
– Zone 1/21 (gas/dust hazardous areas)
– IP66-rated enclosures for washdown environments
– Thermal protection sensors for overload prevention
- Smart Control Features
– Variable Frequency Drives (VFDs): 0–1,000 RPM programmable curves
– Torque monitoring: Real-time viscosity tracking
– Remote IoT connectivity: Predictive maintenance alerts
Customization Services
– Material upgrades: Hastelloy shafts, PTFE-coated blades
– Aseptic designs: CIP/SIP-compatible seals (ASME BPE)
– Specialized impellers: CFD-optimized for shear-sensitive fluids
Why Choose BROYUE Agitators?
✅ 50+ impeller designs for any viscosity (1–1M cP)
✅ Zero leakage: Double mechanical seals (API 682)
✅ 3D-printed prototypes for performance validation
Request:
[ ] CFD flow analysis for your process
[ ] ATEX certification documents
[ ] Motor sizing calculations Engineered for your most demanding mixing challenges.
