Basket Filters – High-Capacity Pipeline Filtration Solutions

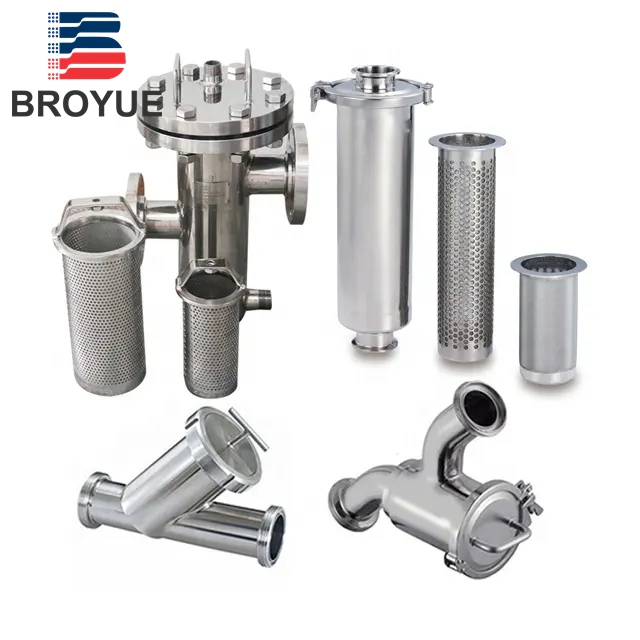

Product Overview
Broyue basket filters are heavy-duty pipeline filters designed for high-solid-content fluids and large-flow recirculation systems. With a filter screen area 2-3 times larger than the pipe diameter, they ensure efficient particle retention while maintaining low pressure drop.
Key Features
- Premium Construction & Surface Finish
– Material: 304 or 316L stainless steel(sanitary-grade)
– Surface Finish:
– Mirror polish (Ra ≤ 0.6μm) on all wetted surfaces
– Electropolishing available for enhanced corrosion resistance
– Compliance: Meets FDA, EHEDG, and 3-A hygienic standards
- Flexible Connection & Design Options
– Inlet/Outlet Configurations:
– Standard: Side-in / Side-out
– Custom: Side-in / Bottom-out (for complete drainage)
– Closure Types: – Flanged (ANSI/ASME/DIN standards)
– Tri-clamp (TC) for quick disassembly (sanitary applications)
– Opening Mechanism:
– Bolted cover (for heavy-duty use)
– Quick-open clamp (for frequent cleaning)
- Easy Maintenance & Cleaning
– Self-draining design – Bottom drain plug for complete fluid evacuation –
-Removable basket – Simply unbolt the flange, lift out the basket, and clean
– No tools required for models with quick-release clamps
Technical Specifications
Max. Operating Pressure: 10 bar (standard) / 16 bar (high-pressure option)
Temperature Range: -20°C to 180°C (higher temps available)
Filtration Grade: 100μm – 3000μm (custom mesh sizes)
Connection Sizes: DN50 – DN500 (2″ – 20″)
Surface Roughness: Ra ≤ 0.6μm (mirror finish)
Applications
✔ Chemical Processing – Removal of catalyst particles, polymer fines
✔ Food & Beverage – Syrup, edible oil, and dairy filtration
✔ Pharmaceutical – Pre-filtration of API solutions
✔ Water Treatment – Cooling water, wastewater solids removal
✔ Oil & Gas – Pipeline protection from debris
Why Choose Broyue Basket Filters?
-High dirt-holding capacity – Oversized screen area reduces clogging
-Hygienic design – Zero dead legs, fully drainable
-Low maintenance – Quick-open mechanisms minimize downtime
-Customizable – Flanged, clamped, or threaded connections
Optional Upgrades
– Magnetic basket inserts (for ferrous particle capture)
– Differential pressure gauges (for clogging monitoring)
– Stainless steel mesh (Duplex 2205) for corrosive media
– Automated blowback cleaning system

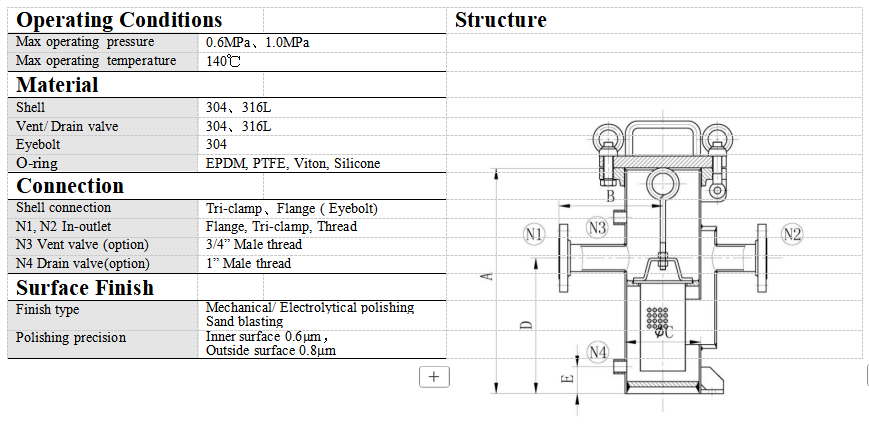

Selection Table
| ［Qty. Of basket］ | ［Model of basket］ | ［Shell material］ | ［In-outlet Connection ］ | ［O-ring］ | ||
| BYBS | 1L | 30 | 4 | F | E | |
| 1L=1 basket | 20=In-outlet 2” filter basket size：Φ100×200 | 4= 304 | F=Flange | E=EPDM | ||
| 30=In-outlet 3”filter basket size：Φ110×250 | 6= 316L | K=Tri-clamp | P=PTFE | |||
| 40=In-outlet 4”filter basket size：Φ140×300 | L=Thread | V=Viton | ||||
| 50=In-outlet 5” filter basket size：Φ180×400 | S=Silicone |
